Description

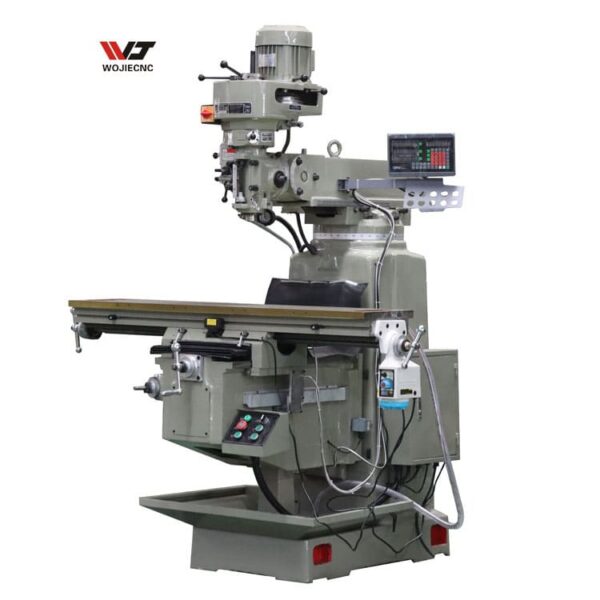

X6325 Product Detail Page
| Specifications | Units | X6325 |
|---|---|---|
| Table size | mm | 1270x254(10”x50”) |
| Table travel | mm | 780/400/400 |
| T slot(number-width-pitch) | mm | 3-16-50 |
| Spindle taper | standard:R8 | |
| Spindle speed range | rpm | standard:16 steps, |
| мм | 50HZ:65-4500 ,60HZ:80-5440 | |
| мм | Optional:variable 65-4000 | |
| Spindle travel | mm | 127 |
| Spindle feed range | mm | 0.04,0.08,0.15(3 steps) |
| Distance between spindle nose and table surface | mm | 90-510 |
| Main motor power | kw | 2.2 |
| Head rotation (left - right ) | ° | ±90° |
| Head rotation (front - rear) | ° | ±45° |
| Weight | kg | 1400 |
| Overall dimension | mm | 1566×1650×2100 |
Product Application
This milling machine is a general-purpose light metal cutting machine with two functions: vertical milling and horizontal milling. It is used to process planes, bevels, grooves, splines, etc. on small parts. It is widely used in mechanical processing, mold manufacturing, equipment, instrumentation and other fields.
Main features:
1. The frame is made of high-strength M Hanna cast iron, with an internal rib cage design, high rigidity and long service life.
2. The spindle base is made of Japanese composite diamond. After hardening and frequency washing, 4 imported bearings are used for turning to ensure high quality and precision.
3. The precision-ground three-axis connecting screw is made of high-quality bronze alloy to ensure durability.
4. The horizontal milling adopts 4-axis speed, with a wide speed range and large torque.
Other features of the metal milling machine:
1. The Y and Z-axis rectangular guide rails ensure the stability of the whole machine.
2. The inside of the guide rail is made of wear-resistant TF material.
3. The three-axis working surface and guide rails are all quenched and sharpened with high precision.
4. Horizontal gear transmission, high processing efficiency.
5. Taiwan manufacturer milling head.
Metal milling machine features:
1. Y and Z axis rectangular guide rails ensure the stability of the whole machine.
2. The inside of the guide rail is made of wear-resistant TF material.
3. The milling head is connected with a fixed structure, without the need for an adapter, ensuring high cutting strength.
Standard components:
1. Work light
2. Coolant pump
3. Gear mechanism
4. 8 chucks per set
5. Tool box with tools
