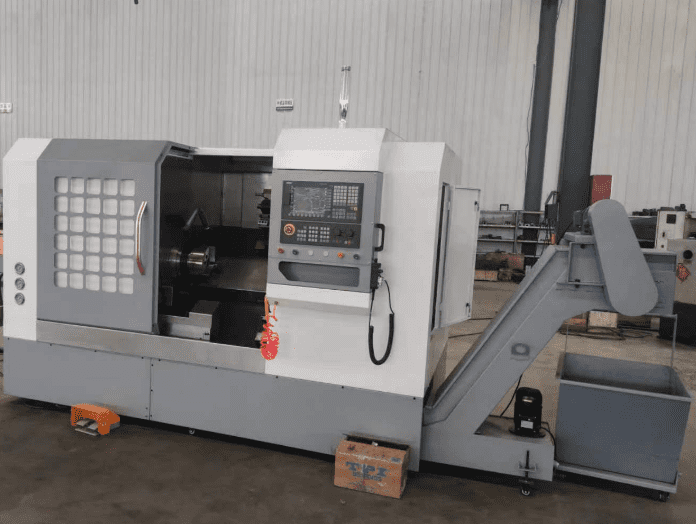

TCK700 Product Detail Page
| parameters | unit | TCK700 |
|---|---|---|
| The maximum turning diameter on the bed | mm | Φ700 |
| The maximum turning diameter on the saddle | mm | Φ500 |
| turning length | mm | 1000 |
| Spindle head type | mm | A2-8 （optional A2-11） |
| Spindle through hole diameter | mm | 88 (optional 105 ） |
| Spindle speed | r/min | 2300/1800 |
| main motor power | kW | 15-18.5 |
| Tailstock sleeve diameter/stroke | mm | Φ150/150 |
| Sleeve inner taper | MT No. | M5 |
| Tailstock movement form | hydraulic | |
| slope | DEG | 45 ° |
| Moving distance X/Z | mm | 350/1650 |
| Fast movement speed X/Z | m/min | 20/20 |
| Servo motor torque X/Z | N.m | 18/18 |
| number of tools | / | 12station |
| Tool Dimensions (Turning / Boring) | mm | 32×32/Φ50 |
| power supply | kVA | 35 |
| Volume (length x width x height) | mm | 5500X2100X2200 |
| Total weight (approx.) | T | 7.5T |
* INDEPENDENT SPINDLE
High-precision spindle structure with a hole, good vibration resistance. The main bearing is NTUS from Germany and NSK bearing.
The bearing of the lead screw uses NSK from Japan P4 grade, using pre-stretching technology to ensure long-term accuracy.
* 12-POSITION HEADSTOCK
12-position hydraulic servo part, Taiwan Steelheart brand, quick tool change and precise positioning.
* CENTRALIZED LUBRICATION
Valley concentration using Japanese technology. The lubrication system is used to realize each guide rail, ball screw and bearing lubrication. We have a lubrication pump with work status and hydraulic control function. Can adjust the oil filling period as desired.
* ULTRA-PRECISE CHUCK
380mm hydraulic empty chuck with high casting rigidity, the workpiece is fixed firmly and has a long service life. The liquid for the press chuck can be controlled through the control panel. Now the workpiece is automatically clamped to improve efficiency.
*LINEAR WAVE GUIDE
X/Z axis 55 double roller rail, high rigidity, high precision and long service life. Strong dust protection.
