Difference Between CNC Machining Center and CNC Lathe
In modern manufacturing, CNC machining center and CNC lathe are two important CNC devices that differ in processing technology, application scope and functional characteristics. Understanding the difference between them is crucial to choosing suitable processing equipment and improving production efficiency and product quality. This article will take a detailed look at the main differences between CNC machining center and CNC lathe.
Basic Definition and Usage

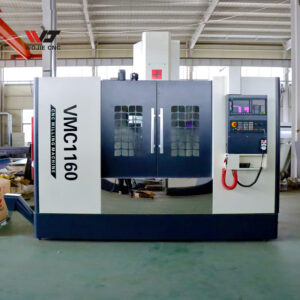

A CNC machining center is a multi-functional CNC machine tool that usually has multiple processing capabilities such as milling, drilling, boring and reaming. It can perform multi-process processing on multiple surfaces of workpieces and is widely used in the mass production of complex parts.

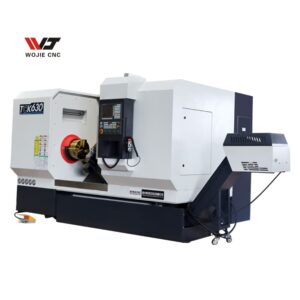

A CNC lathe is a CNC machine tool used for turning, mainly used for processing rotating parts. It rotates the workpiece and uses a fixed turning tool to cut, which is suitable for processing internal and external circles, end surfaces, conical surfaces, etc. threads of workpieces such as shafts and disks.
Structure and Working Principle
A CNC machining center is generally composed of a machine body, a CNC system, a servo system, an automatic tool changer, etc. Its main component is the CNC system, which controls the movement of the tool and the workpiece through pre-programmed machining programs to achieve multi-axis communication and high-precision complex processing.
The main components of the CNC lathe are the bed, the spindle box, the feed system, the CNC system and the tool holder. The working principle of the CNC lathe is that the workpiece rotates on the spindle and the tool moves along a predetermined path to cut. The CNC system controls the spindle speed, the feed amount of the tool and the moving path according to the pre-programmed program.
Processing objects and process characteristics.
CNC machining centers are suitable for processing complex flat and curved parts, especially parts with multiple processes and high precision requirements. The processing range is wide, including planes, grooves, gears, molds, etc. The machining center can complete multiple processes in one clamping operation. , improving production efficiency and machining accuracy.
CNC lathes are mainly used to process outer circles, inner holes, end faces and threads of rotating parts. Its processing characteristics are high efficiency and high precision, which are suitable for mass production of rotating parts with simple shapes but high precision requirements. such as shafts and disks. In the machining process of CNC lathe, the workpiece rotates while the tool moves, which is suitable for machining parts with large aspect ratios.
Tooling system and degree of automation.

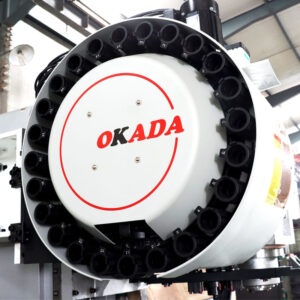

CNC machining centers are generally equipped with automatic tool changers and tool magazines, which can store different types of tools to quickly switch between different processes. High-performance machining centers are also equipped with automatic measurement systems and intelligent programming functions for further use. to improve the degree of automation and machining efficiency.
CNC lathes generally use tool holder systems, and some high-end CNC lathes are also equipped with automatic tool changers, but their tool change speed and variety are not as good as those of machining centers. The degree of automation of CNC lathes is relatively low, but. their machining efficiency and accuracy of individual parts are still excellent.
Operation and programming
The operation and programming of CNC machining centers are relatively complex because they involve multi-axis linkage and multi-process processing. Programmers need to have high programming skills and process knowledge, be able to intelligently organize processing steps, optimize tool paths, and improve processing efficiency and quality.
The operation and programming of CNC lathes is relatively simple because they mainly perform cutting processing on two-dimensional planes. Programmers only need to consider the shape and size of the workpiece and write simple turning programs for some complex turning processes such as threading and taper machining, although some special programming skills are required, the overall programming difficulty is relatively small.
In summary, CNC machining centers and CNC lathes have their own unique advantages and applications. CNC machining centers are suitable for processing complex parts due to their versatility and high precision, while CNC lathes are suitable for producing rotating parts. high efficiency and precision. In practical applications, suitable CNC equipment should be selected according to specific processing requirements and workpiece characteristics to achieve the best processing effect and production efficiency. Understanding the difference between them will help companies make more informed decisions when selecting equipment. PR
