I. Main Parameters (MAIN PARAMETER)
| SPECIFICATIONS | UNITS | VTC800 |
|---|---|---|
| Maximum rotation diameter of workpiece | mm | 850 |
| Max turning diameter | mm | 800 |
| Tool holder vertical movement distance | mm | 720 |
| Tool holder horizontal movement distance | mm | 550 |
| Spindle model | — | A2-11 |
| Spindle speed range | rpm | 50–600 |
| Spindle motor power | KW | 22/30 (Rated speed 750) |
| X-axis rapid feed speed | m/min | 18 |
| Z-axis rapid feed speed | m/min | 15 |
| Cutting feed speed | mm/min | 0.1–5000 |
| X axis motor power, torque | — | 2.4 kW / 15NM |
| Z axis motor power, torque | — | 2.4 kW / 15NM Brake |
| Turret type | — | 8-station turret |
| Toolbar section | mm | 32×32 / Boring tool holder 40/50 |
| Hydraulic chuck diameter | mm | 630 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.005 |
| Machine weight (Approximately) | kg | ≈7600 |
| Machine dimension | mm | 2250×1960×2650 |
II. Main Features (MAIN FEATURES)
- Structural Design and Precision Assurance
The machine tool adopts a single-column vertical guide rail structure. The column, base, and sliding seat are all formed via the gray cast iron resin sand casting process and undergo aging treatment to effectively eliminate internal stress. The guide rail surface is equipped with 55 and 45 roller linear guides, offering strong load-bearing capacity and excellent precision stability. Scientific structural design and sophisticated processing-assembly techniques ensure the machine tool’s stability and precision retention during long-term use, meeting high-precision machining requirements. - Spindle Drive Performance
The machine tool spindle is equipped with a large-area, high-torque servo motor drive system, supporting low-speed high-torque heavy cutting and high-speed cutting modes. It caters to both the robust cutting needs of rough machining and the precision demands of finish machining, adapting to diverse machining scenarios while enhancing machining efficiency and quality. - Motion Control and Functional Adaptation
The X/Z axes feature a high-performance servo drive system with a broad range of rapid feed and cutting feed speeds. Combined with the 8-station turret design, it efficiently completes multi-process operations like turning and boring. The 630-mm-diameter hydraulic chuck is suitable for clamping medium-to-large workpieces. With a positioning accuracy of ±0.008 mm and repeat positioning accuracy of ±0.005 mm, it ensures the precision of machining dimensions.

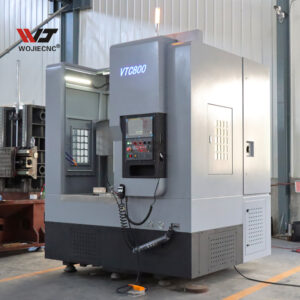

The VTC800 CNC vertical lathe, with professional parameter configurations and structural designs, provides high-precision, high-efficiency machining solutions for industries such as automotive manufacturing, mechanical processing, and mold manufacturing. It is a reliable equipment choice for modern precision manufacturing.
