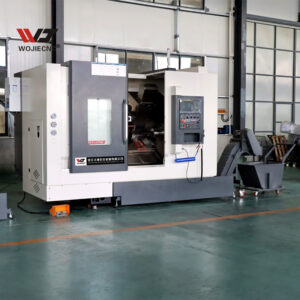

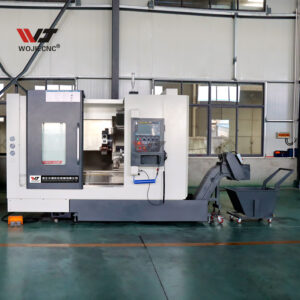

1. Product Overview
The TCK56A is a high-performance slant bed CNC lathe developed by WOJIECNC, designed for precise turning, milling, drilling, and threading of metal parts. Featuring a 30° slant bed structure and HT300 resin sand casting, the lathe ensures exceptional rigidity and stability, catering to complex machining needs in automotive, aerospace, and mechanical manufacturing. Equipped with the standard GSK988TA CNC system, it also supports optional FANUC, SIEMENS, or Syntec systems for versatile control requirements.
2. Core Technical Advantages
- Structural Design & Material Craftsmanship
- The bed, made of HT300 high-strength cast iron with resin sand casting and aging treatment, features a rational internal rib layout for superior vibration and deformation resistance.
- Imported linear roller guides (HIWIN/PMI/THK) ensure high-precision X/Z axis feeding with minimal friction, boosting rapid movement speed and productivity by over 30%.
- High-Precision Machining
- Positioning accuracy: ±0.005mm; repeatability: ±0.003mm, enabling micron-level part processing.
- Spindle speed range: 1-3500 r/min, paired with an 11KW spindle motor and 200N·m cutting torque for heavy-duty metal cutting.
- Intelligence & Automation
- 12-station hydraulic turret (optional BMT power turret) supports multi-process continuous machining, reducing clamping times.
- Centralized lubrication system ensures timely, quantitative oil supply for extended service life.
3. Technical Specifications
| Parameter | WJ56A-500 | WJ56AD-500 | WJ56ADY-500 |
|---|---|---|---|
| Max. swing diameter | Φ560mm | Φ560mm | Φ650mm |
| Max. machining diameter | Φ470mm | Φ380mm | Φ400mm |
| Max. machining length | 520mm | 480mm | 470mm |
| Spindle hole diameter | Φ66/Φ82mm | Φ66/Φ82mm | Φ66/Φ82mm |
| X/Z axis travel | 270/610mm | 260/610mm | 270/610mm |
| Turret type | 12-station hydraulic | BMT45 power turret | BMT55 power turret (Y-axis) |
| Machine weight | 4000kg (4300kg with chip conveyor) | 4200kg (4500kg with chip conveyor) | 4500kg (4800kg with chip conveyor) |
| Dimensions | 3300×2130×2320mm | 3300×2130×2320mm | 3300×2130×2320mm |
4. Optional Configurations

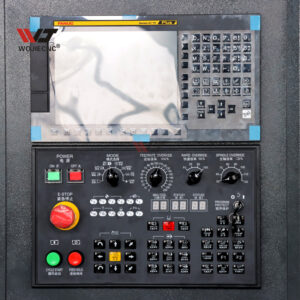

- CNC Systems: FANUC, SIEMENS, Syntec (ideal for high-end machining).

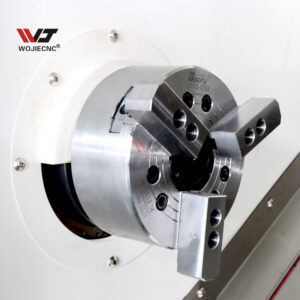

- Hydraulic Chucks: Standard 8″, optional 10″/12″ for stable clamping of large workpieces.

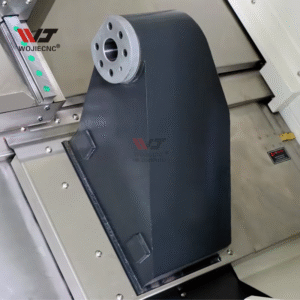

- Tailstock: Hydraulic tailstock (standard) or programmable servo tailstock (optional).
- Accessories: Chip conveyor, oil mist collector, workpiece measuring device, automatic feeder for unmanned production.
5. Application Scenarios
The TCK56A excels in:
- Automotive: Machining engine shafts, gears, and wheel hubs.
- Aerospace: Precision turning of aluminum/titanium alloy parts.
- Mold Manufacturing: Forming high-precision mold cores and cavities.
- General Machinery: Mass production of valves, bearings, and flanges.
6. Manufacturer Strengths
Zaozhuang Wojie CNC Machinery Co., Ltd. (7-year Alibaba verified custom manufacturer):
- 70,188㎡ factory, 177 staff, annual revenue over US$1.45M, exports to 150+ countries.
- 24-step QC process, CE/EAC certifications, 100% on-time delivery rate.
- 2-year warranty + lifetime technical support (Contact: +86 15588241112, wendy@wojiecnc.com).
7. Ordering Information
- Lead Time: 30 days for standard models; customized models negotiable (some in stock).
- Packaging & Shipping: Metal pallet + moisture-proof cloth + plywood case; FOB/CIF/DDP terms available.
- Pricing: US$24,500 for 1-4 sets; US$19,980+/set for ≥5 sets (LOGO/packaging/color customization available, MOQ 1 set).
Contact Us for customized TCK56A solutions! Scan our website QR code or call for a consultation.
